| Model |
PT-S
|
PT-A
|

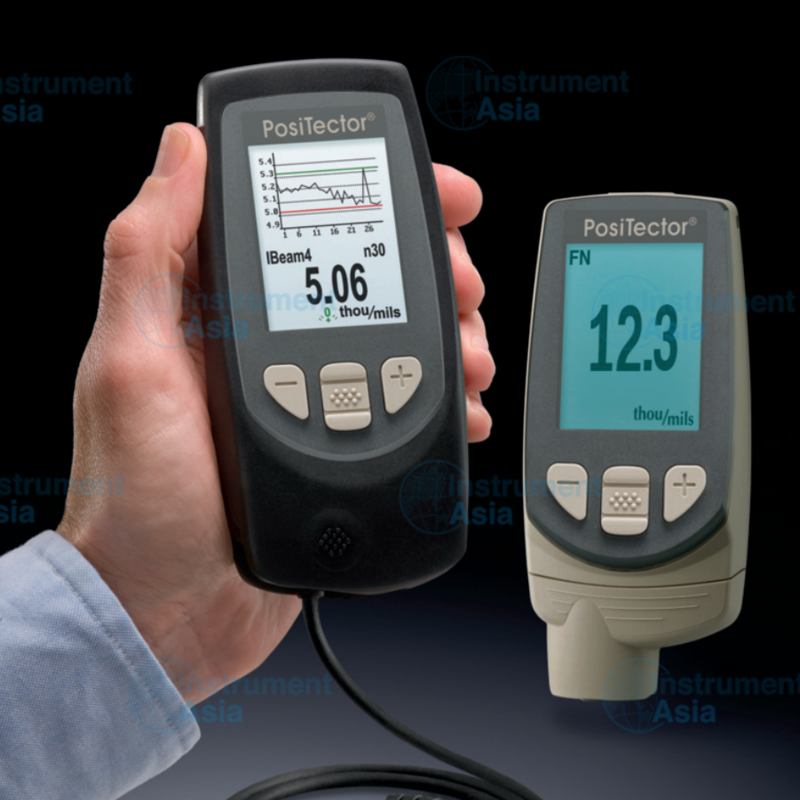

| Picture Body |
|
 |
| General Features |
| All features shown on |
✔ |
✔ |
| Accepts all coating thickness (6000/200/PC), environmental (DPM), surface profile (RTR/SPG), and ultrasonic wall thickness (UTG) probes. |
✔ |
✔ |
| Hi Contrast LCD Display |
Monochrome |
Color |
| Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits |
✔ |
✔ |
| Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring |
✔ |
✔ |
| Multiple stored calibration adjustments for measuring on a variety of substrate conditions |
✖ |
✔ |
| FAST mode - faster measurement speed for quick inspection |
✔ |
✔ |
| SCAN mode - take continuous readings without lifting the probe |
✖ |
✔ |
| Memory Features & Capacity |
| Reading Storage Capacity |
250 in one group |
100,000 in up to 1000 groups |
| Batch Annotation - Create meaningful batch names and enter notes directly on the instrument using a familiar on-screen QWERTY keyboard. |
✖ |
✔ |
| SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels |
✖ |
✔ |
| PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings |
✖ |
✔ |
| Real time graphing, picture prompting and batch notes |
✖ |
✔ |
| PosiSoft Solutions - 4 ways to view and report your data |
| PosiSoft USB Drive - stored readings and graphs can be accessed using universal PC/ Mac web browsers or file explorers. No software required |
✔ |
✔ |
| PosiSoft 3.0 - desktop software (PC/Mac) for downloading, viewing, printing and storing measurement data from DeFelsko inspection instruments. No internet connection required. |
✔ |
✔ |
| PosiSoft.net - a free web-based application offering secure storage of thickness readings |
✔ |
✔ |
| PosiSoft Mobile - gage-based software application allows access to readings, graphs, capture photos and update notations through WiFi enabled devices such as tablets, smart phones and computers |
✖ |
✔ |
| Connection Options |
| USB port for fast, simple connection to a PC and to supply continuous power. USB cable included |
✔ |
✔ |
| WiFi technology - allows the PosiTector to connect to a WiFi network to wirelessly synchronizes with PosiSoft.net, downloads software updates, and connects to mobile devices for expanded functionality |
✖ |
✔ |
Wireless Access Point - directly connect your smart device (phone/tablet) or WiFi-enabled computer to a PosiTector Advanced body without the need for WiFi network access or a Mobile Hotspot.Ideal for...
■ importation of stored measurements into PosiSoft 3.0 Desktop software (PC & Mac) wirelessly
■ access to PosiSoft Mobile anywhere wirelessly |
✖ |
✔ |
| Bluetooth Wireless Technology for data transfer to a PC or optional portable printer |
✖ |
✔ |
