FLIR CM72 Digital Clamp meter

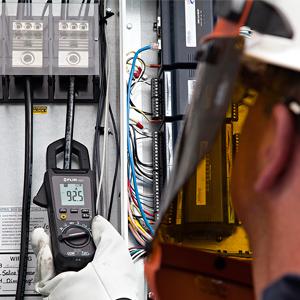

The FLIR CM72 clamp meter gives you better access to wiring in hard-to-reach places. Made with a narrow jaw and high-powered LED worklights, the meter makes it easier to take measurements in dark, crowded panels and cabinets. It’s compact and light to carry in your back pocket wherever you go. The CM72 features AC measurement, Autoranging, True RMS, and more, to help you stay competitive and ensure accurate readings.
- Advanced electrical features including: True RMS, LoZ, Smart Diode with Disable
- Min/Max, Hold and Auto Power Off with Disable
- Expandable to 3000A AC with TA72 & TA74 Flex Clamp Accessories
- Premium gold-tipped silicone test lead accessories included
| CM72 | CM74 | ||
| Technical Summary | MAX Range | MAX Range | Basic Accuracy |
| DC Voltage | 600.0V | 1000V | ±1.0% |
| AC Voltage | 600.0V | 1000V | ±1.0% |
| VFD AC | Voltage – | 1000V | ±1.0% |
| LoZ Mode AC Voltage | 600.0V | 1000V | ±1.0% |
| LoZ Mode DC Voltage | 600.0V | 1000V | ±1.0% |
| DC Current | – | 1000V | ±2.0% |
| AC Current | 600.0A | 600.0A | ±2.0% |
| VFD AC Current | 600.0A | 600.0A | ±2.0% |
| Inrush AC Current | – | 600.0A | ±3.0% |
| Inrush Current threshold – Min | 0.5A, | Integration Time 100ms | |
| Frequency | 60.00kHz | 60.00kHz | ±0.1% |
| Resistance6000Ω | 6000Ω | 6000Ω | ±1.0% |
| Continuity | 6000Ω | 6000Ω | ±1.0% |
| Capacitance | 1000μF | 1000μF | ±1.0% |
| Diode | 1.5V | 1.5V | ±1.5% |
Features
|
|
|
|
|---|---|---|
Better clamp access and portabilityThe clamp meter’s narrow jaw and built-in work lights help you access difficult locations with dim lighting. The slim clamp design is convenient to carry in your back pocket. |
All the electrical features you needThis commercial clamp meter has all the measurement capabilities you need for advanced troubleshooting. It is expandable to 3000A with TA72 & TA74 Flex Clamp Accessories (sold separately). Additional functions include Min/Max Hold and Auto Power Off with Disable. |
Engineering you can have confidence inBuilt rugged, and including accessories to make troubleshooting easier, this commercial clamp meter comes with premium gold tipped silicone test lead accessories, a large LCD display with bright backlight, and rubberized double-molded hand grips to reduce slippage. |
|
|
|
|---|---|
FLIR TA72/TA74 Universal Flex Current Probe Accessories – Sold separatelyThese narrow flex clamp accessories expand your multimeter to 3000 A and make it easy to take measurements in tight or awkward spots. Coupled with a standard output, they’re compatible for use with most digital multimeters and clamp meters, regardless of brand. Available in sizes 10” and 18” (for larger jobs). Comes with probe, batteries and manual. |
LoZ ModeLoZ Mode places a low-impedance load across the input to eliminate potential ghost voltage readings when long wires share a conduit. |
